DF.DF-SPR70

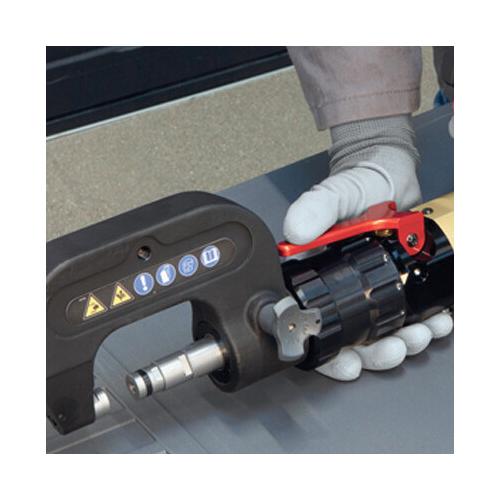

The self-piercing riveter 10T DF-SPR70 is part of most OEM recommended method for joining aluminum panels together. The cold forming technique requires no heat and no pre-drilled holes. The user can manually adjust the actuator speed as well as rivet pressure according to the metal used in order to avoid panel distortion. Dent FIX's self-piercing riveter is a reliable tool for riveting aluminum panels (up to 6.5 mm with the rivets included in the kit but with optional longer 11 mm rivets it can be used to assemble panel thickness of 8 to 9 mm) together with high-dynamic strength. The 10T pressure and included punching die allows for punching through boron steel in order to install flow form rivets. The pressure and speed controls increases accuracy and enable the rivets to be inserted without panel distortion. A pressure gauge on the unit illustrates current pressure amount for controlled operation.

DENT FIX Self-Piercing Riveter, Kit, 10 ton Pulling Force, Ergonomic Handle, Additional Information: 4 s Cycle Time, 3.3 mm and 5.3 mm SPR Die Sets, Closed Hydraulic Set, 6 mm Flow Form Die Set

• High-pressure SPR capable of handling heavy-duty installs
• Adjustable dial with an easy to read gauge for ultimate control
• C-arm swings around into multiple positions for maximum access flexibility
• Comfortable operation and stability
• Makes rivet positioning effortless and simple

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/DENT_FIX_DF_SPR70_Instruction_Installation_Manual.pdf
